The scope of this document is to describe the release notes of the ThingPark Wireless Product Software release 5.2.2.

• Version 5.2.2 subcomponents versioning


• Version 5.2.2 list of new introduced features (User Stories) and release notes for all ThingPark software components


• Issues Resolved for Customer Project/Customer Support


• Additional Technical Details, Open and Resolved Issues in Version 5.2.2


ThingPark Solution Overview

The ThingPark set consists of four main key components:

• ThingPark Wireless – Core network and OSS


• ThingPark OS


• ThingPark X


• ThingPark Enterprise


The ThingPark platform is a modular solution enabling Network Operators to:

• Deploy LPWANs based on LoRaWAN™ or LTE with ThingPark Wireless .


• Manage, activate and monetize IoT bundles (device, connectivity and application) with ThingPark OS .


• Provide value-added data layer services, such as protocol drivers and storage with ThingPark X .


ThingPark OSS acts as the central System Management Platform (SMP), enabling all other ThingPark platform modules with base capabilities such as subscriber management, centralized authentication and access rights, and workflow management.

ThingPark Enterprise is an Internet of Things (IoT) platform that manages private LoRa® Networks. The ThingPark Enterprise edition is used by companies to support their specific business.

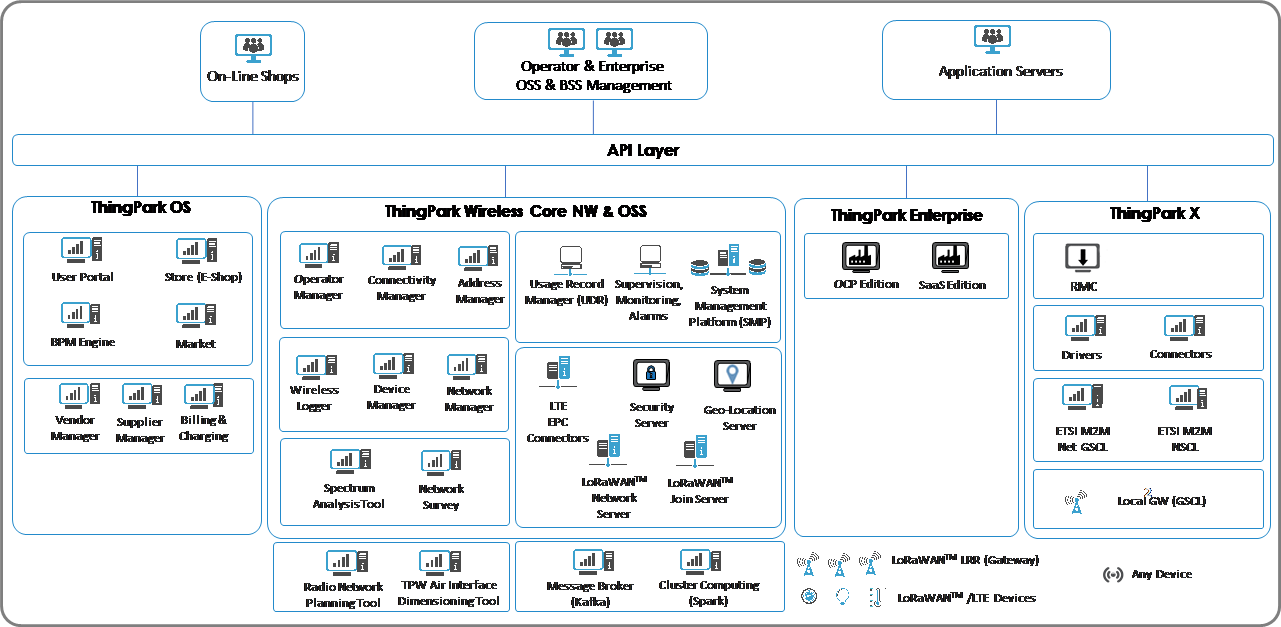

Figure 1 - ThingPark Solution Architecture Description High Level Product Illustration

Subcomponents Versioning

ThingPark OS

Version 5.2.2 Newly Introduced Features (User Stories)

LoRaWAN Standard Alignment Features

RDTP-4573: Synchronous/asynchronous NS/JS interface on the fNS and sNS

Feature Description

The LoRaWAN Backend Interfaces specification v1.0 specifies that the Join Server may either support the synchronous or the asynchronous mode when communicating with the Network Server.

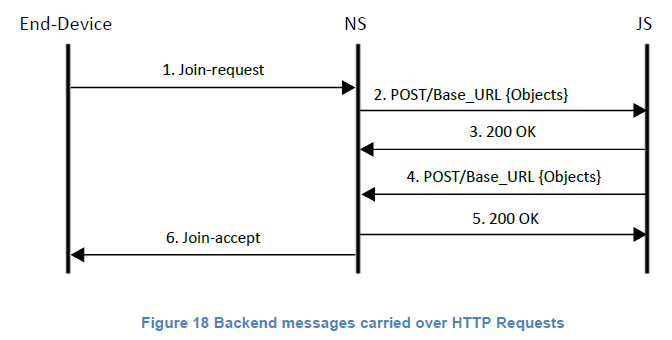

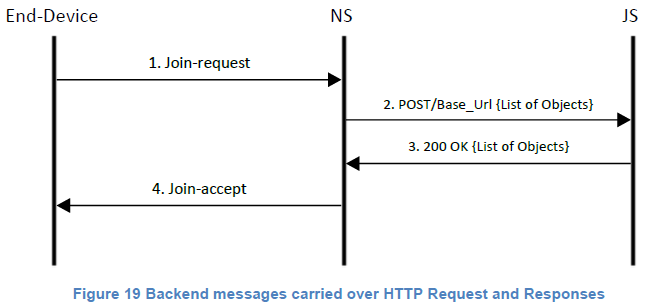

Asynchronous mode means that the JS response is sent in a separate HTTP POST message, as illustrated by Figure 18 of [2]:

Synchronous mode means that the JS response is sent within the HTTP response message (with the 200 OK response), as per Figure 19 of [2]:

Before release 5.2.2, only asynchronous mode was supported by ThingPark Network Server, meaning that it can only interface with Join Servers implementing asynchronous mode (but not with JS implementing synchronous mode).

In release 5.2.2, ThingPark Network Server supports both modes so that it can perfectly interoperate with all the join server implementations.

NOTE: ThingPark Join Server uses asynchronous mode.

Key Customer Benefits

This feature is only relevant for the following scenarios:

• Home activation of OTA devices when the Join-Server function is not combined into the LRC (for instance, handled by an external third-party server).


• Activation away from home of OTA roaming devices, when the fNS communicates with an external JS to retrieve the Home NetID of the roaming device (via HomeNsRequest/Ans messages).


Thanks to this feature, ThingPark Network Server becomes fully compliant with the LoRaWAN backend interface specification and can interoperate with any third-party Join Server.

Feature Activation

To support the synchronous mode, a new attribute \ is added to \ (for sNS/JS interface) and \ (for fNS/JS interface) to give the HTTP pattern supported by the JS:

• Transport=0 means that the JS using a synchronous HTTP/JSON transport (the request is transported in a HTTP POST request and the answer is transported in a HTTP result).

• Transport=1 means that the JS using an asynchronous HTTP/JSON encoding (the request is transported in a HTTP POST request and the answer is also transported in a HTTP POST request).


Sample :

<ForeignOperator>
    <AppEUI>A34A34A341234567</AppEUI>  // AppEUI is the key (for OTAA activation)
    <NetID>A34A34</NetID> <Transport>1</Transport>
    <RoutingProfileJS>js-ope1</RoutingProfileJS>
</ForeignOperator>

<RoamingOperator>
    <AppEUI>A34A34A341234567</AppEUI>  // AppEUI is the key (for OTAA activation)
    <NetID>A34A34</NetID>
    <Transport>1</Transport>
    <RoutingProfileJS>js-ope1</RoutingProfileJS>
</RoamingOperator>

Feature Limitations

Not applicable.

Security Features

RDTP-2411 (NFR-767): Secure AppKey/NwkKey provisioning

Feature Description

Prior to release 5.2.2, during the provisioning process of OTA devices in the Device Manager or Key Manager applications, the device’s root keys - that is to say, AppKey and NwkKey (this latter is valid only for LoRaWAN1.1 devices) – are provisioned in clear text into TWA. Even if these root keys are immediately encrypted by the HSM’s master key (in HSM mode) when they are provisioned by the user, clear-text provisioning into TWA could be deemed as a security weakness.

In release 5.2.2, the subscriber can provision his devices in a fully-secured way by relying on asymmetric cryptography as per the following steps:

1. The subscriber exports an RSA Public Key and uses it to encrypt the device’s root keys.


2. Device keys are provisioned in encrypted format and decrypted using the RSA Private Key by the HSM (or by TWA in non-HSM modes)


Secure AppKey/NwkKey provisioning in HSM mode:

The following diagram illustrates the provisioning mode supported in HSM mode.

1. The user exports the HSM RSA public key (HEK[pub]) and uses it to encrypt AppKey and NwkKey.


2. The user creates the device by providing the RSA-encrypted AppKey and NwkKey


   1. The HSM re-encrypts AppKey and NwkKey using its master keys (HAK/HNK)


   2. HSM-encrypted AppKey and NwkKey are provisioned in LRC


Where:

• nwkKey.bin is the NwkKey in binary format


• appKey.bin is the AppKey in binary format


• HEK1.pem is the RSA Public Key in X.509 SubjectPublicKeyInfo/OpenSSL PEM format


• encryptedNwkKey.bin is the RSA encrypted NwkKey in binary format


• encryptedAppKey.bin is the RSA encrypted AppKey in binary format


Secure AppKey/NwkKey provisioning in SSM/legacy modes:

While this feature is essentially interesting for HSM mode, it is also extended to non-HSM modes:

• SSM (Software Security Mode): In this mode, TWA replaces the HSM in key encryption process. Hence, the generation of the public RSA key is done by TWA as per the following diagram. Note that SSM is only supported for splitted NS-JS architecture (also known as standalone JS mode).


• Legacy mode (also known as LRC combo-mode, where the join server function is embedded in the LRC) without HSM.





1. The user exports the TWA RSA public key (TWK[pub]) and uses it to encrypt AppKey and NwkKey.


2. The user creates the device by providing the RSA-encrypted AppKey and NwkKey. TWA re-encrypts AppKey and NwkKey using LRC Cluster AES Key (LCK) and provisions them in the LRC.


   Benefit: AppKey and NwkKey are not entered in clear text in GUI.


   For non-HSM modes, the user has the choice to provision root keys in clear-text or secure mode (both options are supported by GUI and API).


The CSV file used for device import is enhanced for LoRaWAN OTAA device:

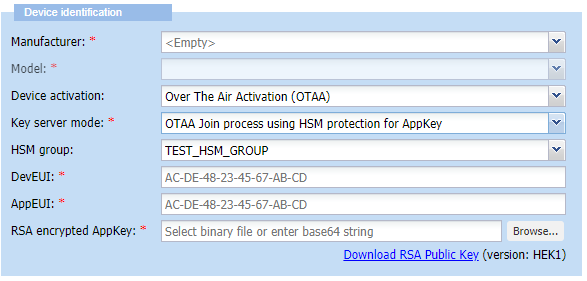

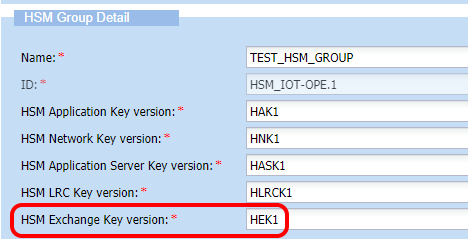

In Operator Manager GUI, the Operator can provision the HSM Exchange Key (RSA) version under “HSM Groups” panel, as illustrated by the following figure:

Key Customer Benefits

Feature Activation

Feature Limitations

Not applicable.

RDTP-2208 (NFR-1073): Support TLS between LRR and SLRC

Feature Description

The aim of this feature is to enrich the security options proposed by ThingPark for the LRR-LRC backhaul interface.

Before release 5.2.2: only IPSec tunneling is supported for LRR backhaul (based on Strongswan).

Starting release 5.2.2: TLS is proposed as another VPN tunneling mode besides IPSec.

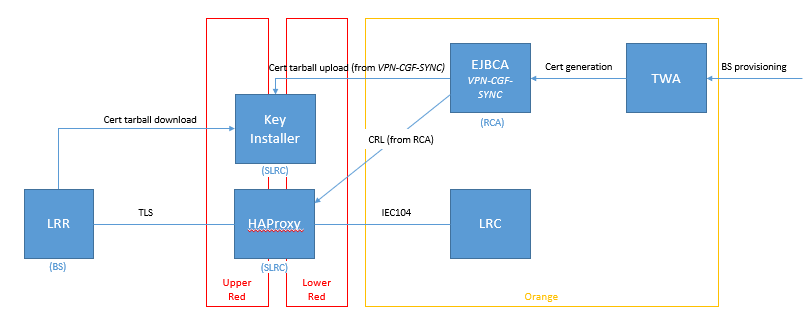

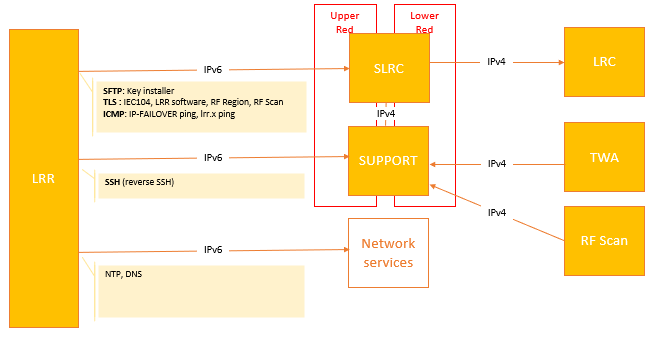

The following diagrams illustrates the LRR flows in TLS mode:

• For IEC-104 flow and connection to Key Installer:





• IEC-104 messages are transported inside the TLS tunnel to HAProxy, then routed by HAProxy to LRC.


• X.509 certificates are configured the same way as IPSec, i.e. generated by TWA/RCA and pushed to the Key Installer where they are downloaded by the LRR.


• For other flows (SFTPC and SSH):


• SFTP is tunneled over TLS, ended on the HAProxy, and is routed to the LRC or SUPPORT server.


• SH remains out of the tunnel (like IPSec).


Thanks to this feature, the Operator / Network Partner has more choices (IPSec or TLS) to implement security of LRR backhaul interface towards the core network.

It is difficult to say which one of IPSec or TLS is better, this depends on the Operator choice. The main advantage of IPSec over TLS is its ability to secure UDP traffic, however, this point is not relevant for ThingPark since LRR-LRC communication is always based on TCP.

Feature Activation

This feature is deactivated by default.

To activate TLS on LRR side, a specific flag must be configured in lrr.ini:

NOTE: HAProxy is a TLS pre-requisite, so it should be deployed on SLRC before activating TLS on the LRR side.

Feature Limitations

Not applicable.

RDTP-7582: Enhanced Security Access to Key Installer

Feature Description

The scope of this feature is to improve the security level of the base station access to the Key Installer. Key Installer is a ThingPark component responsible of distributing the VPN certification tarballs to base stations.

Before release 5.2.2 , the access to the Key Installer is secured by IP filtering/whitelisting. This approach has some drawbacks:

• It requires that all public IP addresses of all the gateways are known to the network Operator to build the IP whitelist, which presents an operational overhead.


• Additionally, the IP address of base stations using cellular backhaul as primary interface cannot be directly filtered due to NAT protocol.


After successful authentication, the base station is granted secure access to its personalized tarball; each base station can only retrieve its own tarball (i.e. cannot download tarballs of other base stations).  Hence, even if the security of one base station is compromised due to theft (for instance), the security of other base stations is not compromised.

NOTE: This feature is only compatible with LRR-UUID identification mode.

To use this feature, the following steps are required:

1. For each base station, login to SUPLOG (LRR local administration GUI) to retrieve the public key of the base station. NOTE: The base station image should be configured to use the Public Key Authentication mode.


2. In Network Manager application, provision this public key retrieved from SUPLOG. This can be either done at base station creation or updated for an existing base station, it is only available if BS security (TWA parameter “defaultBsSecurity”) is configured to “IPsec or TLS (X.509 certificates)”.


Public key provisioning during base station creation:

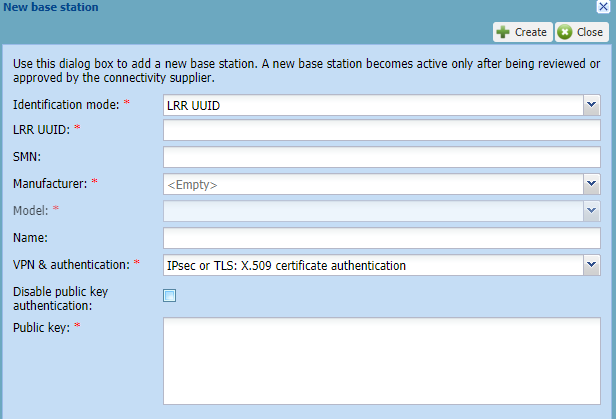

“Disable public key authentication” flag is displayed if the operator configuration allows this mode as an option. If this checkbox is deactivated, the legacy mode (based on IP filtering and shared passwords) remains usable.

Public key provisioning for existing base station:

In base station dashboard, click “Manage Public Key” button, then fill the Public Key.

Key Customer Benefits

Thanks to this feature, the base station access to the Key Installer becomes more secure:

• Access control is performed by Public Key Authentication mechanism instead of IP address filtering operational gain.


• Once authenticated, the base station can only retrieve its own certificate.


  A base station cannot access the certificates of any other base station enforced security.


Feature Activation

• ENFORCED: Public key authentication is mandatory, a public key is required to create a base station.


• OPTIONAL_ENABLED_BY_DEFAULT: Public key authentication is mandatory by default, but user can switch back to IP whitelist authentication to create a base station without providing a public key.


• OPTIONAL_DISABLED_BY_DEFAULT: IP whitelist authentication is the default, but user can switch to public key authentication and provide a public key.


• DISABLED (default mode): Public key authentication is disabled. A public key is never requested on base station creation (behavior prior to release 5.2.2).


Additionally, the base station image must be configured to use public key authentication to enable this feature.

Feature Limitations

The following limitations apply to this feature:

• Base station’s public key is only available through SUPLOG and must be provided on base station creation. Any base station configured to use public key authentication through SUPLOG without setting its public key in TWA Network Manager will fail to connect to the Key Installer.


• When an operator is configured to use both public key (new mode described by this feature) and shared password authentication (legacy method) for key installer, all operator’s tarballs are accessible using shared password, including tarballs of base stations using public key authentication.


  In other words, to provide fully-secure access to the Key Installer tarballs, all the base stations under the operator scope must exclusively use the public key authentication mode.


• To use public key authentication on existing base stations, they must be flashed with an image configuring this feature; this is required to have the latest version of checkvpn script compatible with this feature.


• This feature is only compatible with base stations using LRR-UUID identification mode.


Scalability Features

RDTP-4978 (NFR-589): TWAv2 and MongoDB sharding

Feature Description

This feature brings several scalability improvements to ThingPark Wireless architecture:

• MongoDB scalability:


  • MongoDB sharding to support horizontal scaling : sharding is a method for distributing data across multiple machines. MongoDB uses sharding to support deployments with very large data sets and high throughput operations.

    MongoDB offers balancing features to load-balance the data chunks among the different shards.

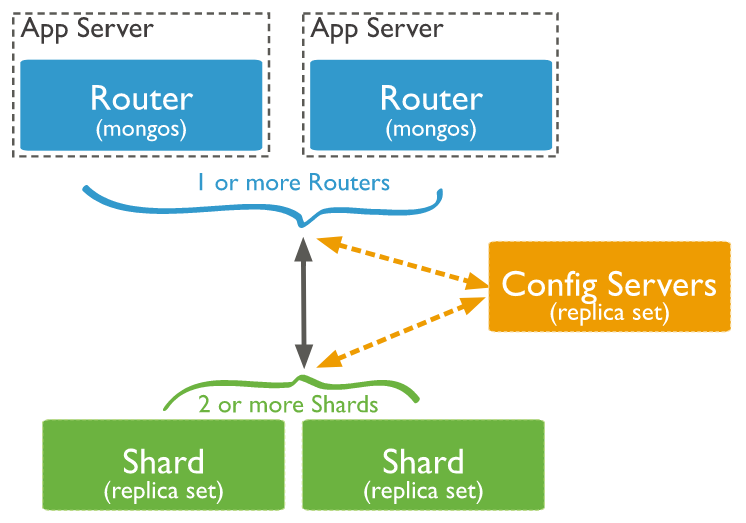

    The following diagram illustrates the different components of a sharded


    MongoDB cluster:


• TWA (back-office applications) scalability: Enhancement of horizontal scalability by splitting the TWA architecture into several sub-components to allow independent scaling of each component and support the consumption of LRC reports via Kafka.


The following diagram shows the different components of TWAv2 architecture:

NOTE: For ThingPark Wireless, LRC reporting to OSS over HTTP is DEPRECATED and replaced by TWA-DEV and TWA-RAN functions.

• LRC (core network) scalability:


• Replacement of HTTP by Kafka for the LRC-OSS reporting interface, hence increasing the reliability of this interface and optimizing LRC CPU load


Key Customer Benefits

This feature brings substantial scalability improvements to the ThingPark back-office architecture. It allows a fully horizontally-scalable architecture for both TWA and Mongo databases.

• Thanks to MongoDB sharding, ThingPark Wireless shall support N*1000 messages/sec, where N represents the number of shards. Moreover, the access to MongoDB is optimized in release 5.2.2 thanks to the use of bulk-write operations.


  NOTE: Prior to release 5.2.2, N=1 (no sharding), so the maximum number of messages/sec until release 5.1 is limited to 1000.
  With release 5.2.2, it is possible to support hundreds of shards; therefore, if N = 100, ThingPark Wireless back-office shall support 100K messages/sec.

  However, the end-to-end bottleneck in release 5.2.2 is the core network (LRC), so the overall end-to-end limit in release 5.2.2 is 1500 messages/sec .


• The split of TWA architecture into several sub-components allows independent scaling of each component according to traffic growth so that additional instances are only deployed where needed. For instance, if the bottleneck comes from device processing, only TWA-DEV instances could be multiplied without scaling-up TWA-RAN.


• The use of Kafka for LRC-TWA interface is crucial to improve end-to-end scalability, by removing the HTTP protocol. It also increases the reliability of this interface thanks to the use of a reliable message queue.


Feature Activation

The following figure shows the migration procedure to activate TWAv2 and MongoDB sharding once the network is migrated to release 5.2.2:

1. HTTP interface toward TWA is deactivated on LRC


2. Timestamp (TS) of latest inserted MongoDB report is retrieved. The following command allows retrieving timestamp TS of the latest DeviceHistory document:


   wireless.DeviceHistory.find( {}, {“tm”: 1, “_id”: 0}).sort({“tm”: -1}).limit(1)


3. MongoDB sharding is activated, by following these steps:


   • MG_CONF replica set is deployed


   • mongos is deployed on AS_TWA instances


   • Data migration is performed


   • New indexes are created


   • Sharding is activated on all collections


4. TWA-DEV / TWA-RAN are started


   • TWA-DEV is configured to only process reports > TS – 1h


   • TWA-RAN is configured to only process reports > TS – 1h


NOTE: TWA-DEV / TWA-RAN implement a specific behavior during the migration process:

• TS: a configuration parameter corresponding to the timestamp of the last report already processed

• Kafka topic consumption:

• If the record timestamp \<= TS: the record is ignored

• Else: the regular processing applies


NOTE: One hour is a compromise to:

• Avoid losing too many late LRC reports


• Limit the amount of LRC reports processed twice


Feature Limitations

The implementation of this feature has the following limitations:

• Before migrating to release 5.2.2, and in order to efficiently activate MongoDB sharding, the ThingPark network should have remained on release 5.1 for at least 35 days. This limitation is justified by the need to ensure that all the MongoDB documents include the mandatory fields constituting the sharding keys – some of these keys were only added in release 5.1.

  Older reports (created before release 5.1 and thus missing some of these fields) typically expire after 35 days.


For networks migrating directly from release 5.0.1 to release 5.2.2, MongoDB sharding should be delayed by 35 days after the 5.2.2 migration to avoid losing any data history once sharding is activated.

• During the migration to release 5.2.2 (and the switch from HTTP to Kafka for the LRC-OSS interface), some LRC reports could be processed twice by TWA.

  The overlapping period (typically one hour) is defined as a trade-off between minimizing the loss of potential late LRC reports and limiting the amount of LRC reports processed twice.


This double processing would impact the CRC-error stats, some BS or device alarms may be also triggered twice.

NOTE: Double processing of LRC reports does not impact UDR generation: network traffic is inserted only once in MongoDB.

• Provisioning of LRC by TWA remains over HTTP interface. This limitation shall be lifted to LRCv2 architecture.


RDTP-4762: Support 50K LRR connections to LRC

Feature Description

This feature allows ThingPark core network to support up to 50 000 base stations within the same LRC cluster.

Until release 5.1, the maximum number of base stations that can be simultaneously connected to the LRC is 30 000 base stations.

Starting release 5.2.2, this limit is pushed to 50 000 base stations to ease the large-scale deployment of indoor pico/nano gateways that are typically installed on end-customer premises.

Key Customer Benefits

Thanks to this feature, ThingPark Wireless becomes ready for massive deployment of indoor pico/nano gateways; facilitating the heterogenous network deployment model in which the macro layer of outdoor gateways serves as an umbrella for the underlying small cell (especially indoor) layer of pico/nano gateways.

Feature Activation

No applicable.

Feature Limitations

Not applicable.

MAC Efficiency and Performance Optimization Features

Multicast configuration optimization (RDTP-4265, RDTP-2215 and RDTP-5105)

Feature Description

The following configuration enhancements are supported in release 5.2.2:

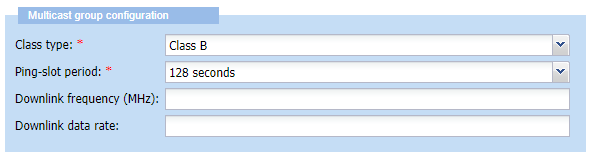

• RDTP-4265: Simplified management of multicast retransmission timer.


This timer is used by the LRC to determine the maximum waiting time between 2 successive multicast transmission attempts: for instance, if the “Downlink maximum transmissions” is set to 3 in the multicast connectivity plan, the LRC will attempt a first transmission towards each base station (BS) included in the multicast scope and start a timer to wait for the downlink_sent_indication back from each BS. Once this timer expires without a positive response from one BS, the LRC will send the second attempt and so on unless the maximum number of attempts is reached.

Note that this timer should always be set higher than (or at least equal to) the maximum LRR retry period, which is 60 seconds for class C devices and maximum 256 seconds for Class B. The LRR retry period is defined as the maximum period during which the LRR autonomously retries the transmission of a downlink class B/C frame before eventually giving-up (i.e. sending back a failure indication to the LRC).

• Before release 5.2.2: this LRC waiting timer was set in the connectivity plan. However, there was no guarantee that this LRC setting will be aligned with the LRR’s local retry timer. If the LRC timer is set lower than the LRR timer, then the same downlink frame might be needlessly sent several times by the same base station, hence wasting radio resources and increasing pollution over the radio interface.


• Starting release 5.2.2: The LRC waiting timer is removed from the multicast connectivity plan and converted to two systemwide parameters in lrc.ini:


  • For class B multicast groups: “MulticastRetransmitTimerClassB”, default value is 256 seconds (corresponding to 2 full beacon periods, aligning with the largest LRR retry timer value).


  • For class C multicast groups: “MulticastRetransmitTimerClassC”, default value is 60 seconds (aligned with the default LRR retry timer).


• Benefit: Configuration simplification, avoid any conflict between LRC timers and LRR’s local timer, optimization of downlink resources over the air.


• RDTP-2215: This feature provides the multicast application server with additional stats regarding the distribution of the LRR delivery failure causes in the final multicast summary reports.


  • Before release 5.2.2: The multicast summary reports sent by the LRC to AS and ThingPark OSS indicate the overall success rate but don’t indicate the breakdown of transmission failures by cause.


  • Starting release 5.2.2: The distribution of delivery failure causes is added to the final multicast summary report.


• For instance, if a major part of the downlink transmissions fails due to duty cycle constraint, then the multicast server should adapt its transmission pace to avoid duty cycle saturation scenarios. This information is particularly used by Actility’s Reliable Multicast Server (RMC-Server) providing FUOTA services.





• RDTP-5105: This feature allows configuring the multicast frequency and data rate directly within the multicast group without necessarily using the RF Region configuration.


  • Before release 5.2.2: The multicast frequency and data rate are inherited from the RF Region configuration (except for the RX2 data rate that could be forced in the multicast connectivity plan).


    This implementation is suitable in multicast modes that are personalized in the device stack (i.e. without any configuration by the application-layer messages defined in the LoRaWAN specification) since the device uses the same data rate and frequency (defined in RF Region) for both unicast and multicast modes.


  • Starting release 5.2.2: For multicast mode implying session configuration by application-layer messages (as per the LoRaWAN multicast data-block specification), the multicast MAC transmission parameters (i.e. data rate and frequency) don’t necessarily follow the unicast settings.


    Therefore, release 5.2.2 allows setting these transmission parameters separately at multicast-group level without binding them to the unicast RF Region configuration.


  • Benefit: Additional flexibility to optimize the multicast configuration independently from unicast, which is particularly relevant for multicast configurations setup by the application layer and especially Actility’s Reliable Multicast (RMC) Server.


Key Customer Benefits

The bunch of multicast enhancements brought by ThingPark Wireless release 5.2.2 targets the following benefits to TPW customers:

• Configuration simplification and flexibility


• Optimization of the downlink resources by avoiding transmitting the same frame twice by the same gateway


• Enriched delivery summary of downlink failure causes to help application servers adapt their multicast transmission pace accordingly


• Ability to configure the multicast transmission parameters (data rate and frequency) differently from unicast mode, by configuring these parameters directly in the multicast group. This enhancement implies that the multicast session is setup by the application layer to directly instruct the unicast device which parameters are used by the multicast server.


Feature Activation

RDTP-4265 (handling of multicast retransmission timer) is activated by default in release 5.2.2, it cannot be deactivated since the Connectivity Plan parameter is deprecated in this release.

RDTP-2215 (enhancement of the multicast summary report) is also activated by default in release 5.2.2.

RDTP-5105 (configuration of multicast frequency/data rate at multicast group level) is deactivated by default, i.e. the related fields are left empty after migration to release 5.2.2 or when creating a new multicast group and hence the RF Region parameters are still used unless the frequency and/or data rate are already forced in the multicast device table of the LRC (also known as table A).

To configure the multicast frequency and/or data rate at multicast group level, the corresponding fields should be filled as per the following screen shots for class B and class C device:

If either field is left empty in the multicast group configuration, the value is taken from the RF Region configuration unless it is already forced in the multicast device table of the LRC (also known as table A).

Feature Limitations

The multicast frequency set in the multicast group must match a Logical Channel (LC) defined in the RF Region configuration, either in the RxChannels or TxChannels section (RX2Freq is out of scope). If this condition is not fulfilled, the LRC shall return an error (F0: “No matching channel for multicast frequency”) for every transmission related to this multicast group.

OSS/Billing Features

RDTP-2818 (NFR-1068): Ability to define whitelist/blacklist of Network Partner at Connectivity Plan level

Feature Description

The scope of this feature is to support to ability to define a whitelist or a blacklist of Network Partners (also known as network providers) in the Connectivity Plan, to control which gateways (accordingly to their Network Partner ID) can relay LoRaWAN traffic of the devices associated with this connectivity Plan.

The following diagram illustrates the case when the LRC filters uplink frames based on the Network Partner ID of the receiving base station, using a whitelist defined in the Connectivity Plan.

Whitelisting: When the LRC receives an uplink frame, it verifies the Network Partner ID (NP-ID) for each gateway relaying this frame and processes the uplink frames received only by those whose NP-ID is included in the whitelist defined in the connectivity plan (uplink frames relayed by other base stations are ignored by the LRC, i.e. not sent to AS/OSS; and those gateways are not eligible for downlink transmission).

Blacklisting: When the LRC receives an uplink frame, it verifies the Network Partner ID (NP-ID) for each gateway relaying this frame and processes frames reported by all gateways except those whose NP-ID is included in the blacklist defined in the connectivity plan.

Key Customer Benefits

This feature allows ThingPark Operators and Connectivity Suppliers to fully leverage the TPW Network Partner/Provider role to split the Operator’s LoRaWAN network into several sub-networks while keeping the same NetID for all the sub-networks and fully controlling whether devices are authorized to roam between the different sub-networks of the Operator.

Examples of sub-networks within the Operator’s network are:

1. Deployment of LoRaWAN base stations in multiple affiliates of a multi-national Service Provider. Thanks to this feature, the Operator can control and monetize the device roaming between different affiliates.

2. Managed Customer Networks (introduced since TPW release 5.0.1), where customers host LoRaWAN base station on their premises to maximize their local coverage.

   In release 5.2.2, thanks to this feature, the Connectivity Supplier can control whether devices associated with the Managed Customer Network (i.e. having a specific Network Provider ID) can also be served by the public network and vise versa.


Feature Activation

This feature is deactivated by default after the migration to TPW release 5.2.2, since the field “Network Partner access control” is set “No access control” by default in the Connectivity Plan:

To activate this feature, the user should either define a whitelist or blacklist of Network Partner IDs.

• Whitelisting is selected by choosing “Whitelist access control” in the “Network Partner access control” field, then adding/removing the Network Partner IDs to be authorized from the drop-down list:


• Likewise, blacklisting is selected by choosing “Blacklist access control” in the “Network Partner access control” field then selecting the Network Partner IDs to be banned.


Feature Limitations

This feature does not apply to multicast.

Moreover, the maximum number of Network Partners that can be added to the whitelist/blacklist is limited to 50.

RDTP-2413 (NFR-720): NwkID filtering at LRR level

Feature Description

This feature allows the Operator to filter unwanted LoRa traffic directly by the LRR.

Before release 5.2.2: The LRR forwards all the uplink frames having a valid physical CRC to the LRC, even those coming from devices not provisioned on the Operator’s network nor any of its roaming partners. This approach is sub-optimal from backhaul consumption standpoint especially for cellular (3G/LTE) or satellite backhaul.

Starting release 5.2.2: The Operator can configure a list of blacklisted/whitelisted DevAddr prefixes, representing respectively the banned/authorized Network IDs (NwkID, included in the DevAddr sent in every uplink frame).

• Using blacklisting, the Operator can filter-out the NwkID of another LoRaWAN network deployed within the same coverage area, to avoid wasting its backhaul resources routing the competitor’s traffic if there is no roaming agreement between both Operators.


• Using whitelisting, the Operator shall configure its NwkID as well as those of all its roaming partners; so that the LRR only routes the uplink frames having these authorized NwkIDs.


The NwkID white/black list is configured at the LRC (in the Operator table, see “Feature Activation” section for more details) and synchronized with the LRR via specific IEC-104 message. The NwkID refresh rate is configurable in the LRR (lrr.ini file).

The minimum LRR version required for this feature is 2.4.11.

Key Customer Benefits

This feature allows the network Operators and Network Providers to optimize their backhaul consumption by avoiding the routing of uplink frames that will be later-on rejected by the LRC.

This optimization is essentially relevant for cellular and satellite backhaul modes.

Feature Activation

This feature is deactivated by default.

NOTE: NetworkFilterVersion = 0 is reserved to instruct the LRR to delete all the NwkID filters currently loaded on the LRR, hence deactivating this feature after it has been used.



                  (...)

               <NetworkFilter>-00/7,-02/7,+04/7</NetworkFilter>
               <NetworkFilterVersion>1</ NetworkFilterVersion>
               (...)



Example2: In the following example, an UL frame with a NwkID 00000010 will be accepted, but an NwKID 00000011 will be dropped.


               (...)
               <NetworkFilter>-03/8 ,+02/7</NetworkFilter>
               <NetworkFilterVersion>2</ NetworkFilterVersion>
               (...)




For SaaS customers not having access to the LRC, please contact Actility Support team to configure the NwkID list.

Feature Limitations

The implementation of this feature in release 5.2.2 has the following limitations:

• The configuration of the NwkID whitelist/blacklist is configured directly in the LRC. Provisioning of this list by TWA is not yet supported


• Since the filtering is based on NwkID (included in the DevAddr field of the LoRaWAN uplink frames), the Join Request frames (for OTA devices) are not filtered in the LRR because the DevAddr is not yet allocated when the device sends its Join Request.


• The number of uplink frames dropped by the LRR due to the NwkID filtering during the last aggregation period (5 minutes by default) is reported to TWA in the RFcell report but this stat is not yet available on TWA side.


• The maximum number of NkwIDs to be white/blacklist per Operator is limited to 1000.


• Disabling NwkID filtering by setting NetworkFilterVersion = 0 is currently in restriction. This limitation will be lifted by RDTP-14077.


RDTP-2343 (NFR-775): IPv6 support between LRR and LRC

Feature Description

This feature supports IPv6 addressing, in addition to the existing IPv4, for all LRR-SLRC interface. Only LRR IP flows are targeted by this feature, LRC\<->AS interface is out of scope of this feature.

IPv6 addresses are 128-bit IP address written in hexadecimal and separated by colons, for instance: 3ffe:1900:4545:3:201:f8ff:fe21:66cf.

The following diagram illustrates the IP flows when the LRR uses IPv6:

Although the LRC is ready to support IPv6, the current scope of this feature in release 5.2.2 is limited to the LRR\<-> SLRC interface; so the LRC remains on IPv4 in the current release.

Key Customer Benefits

This feature allows supporting IPv6 addressing, which has the following advantages:

• Significant increase in the address pool compared to IPv4, no more private address collision


• Easy administration, no need for DHCP (thanks to “IPv6 Stateless Address Auto configuration” feature)


• Simpler header format


• No more NAT (network address translation)


• Cost: IPv6 is cheaper than IPv4 since IPv4 addresses are close to exhaustion.


Feature Activation


               [ipv6]
                     addglobalscope=1 ; default 0
                     prefix=aaaa:: ; default aaaa::




Feature Limitations

This feature has the following limitations in release 5.2.2:

• In ThingPark release 5.2.2, IPv6 has been tested only in TLS mode (not tested with IPSec).


• The fallback mode from IPv6 to IPv4 is not yet supported.


RDTP-4515: Default ISM band parameters become configurable

Feature Description

The aim of this feature is to render the default RF parameters defined by the LoRaWAN Regional Parameters specification configurable in the LRC for each ISM band profile.

Before release 5.2.2 , the default settings for the following parameters (for each regional profile) is defined in the Device Profile boot settings.

• MAC RX1 Delay (RX2 delay is always 1s more than RX1)


• Join Delay for RX1/RX2


• RX1 Data Rate Offset, RX2 Frequency, RX2 Data Rate


• Beacon Frequency and Data Rate, PingSlot Frequency


• Uplink / downlink dwell time (only for AS923 profile)


If these values are not filled in the Device Profile, the default settings defined by LoRaWAN were hardcoded in the LRC.

In release 5.2.2 , instead of using hardcoded values, the default settings are configured in a new LRC table called “IsmbandProfile” under /FDB_lora directory. An example of this table is given below for EU868 profile:



                  <

                     lora:IsmbandProfile


                     xmlns:lora

                  =

                     "

                        http://uri.actility.com/lora

                     "

                  >


                  <

                     lora:ID

                  >

               eu868

                  </

                     lora:ID

                  >


                  <

                     lora:MACRxDelay1

                  >

               1000

                  </

                     lora:MACRxDelay1

                  >


                  <

                     lora:MACJoinDelay1

                  >

               5000

                  </

                     lora:MACJoinDelay1

                  >


                  <

                     lora:RX1DRoffset

                  >

               0

                  </

                     lora:RX1DRoffset

                  >


                  <

                     lora:RX2DataRate

                  >

               0

                  </

                     lora:RX2DataRate

                  >


                  <

                     lora:RX2Freq

                  >

               869.525

                  </

                     lora:RX2Freq

                  >


                  <

                     lora:BeaconFrequency

                  >

               869.525

                  </

                     lora:BeaconFrequency

                  >


                  <

                     lora:PingSlotChannelFrequency

                  >

               869.525

                  </

                     lora:PingSlotChannelFrequency

                  >


                  <

                     lora:BeaconDataRate

                  >

               3

                  </

                     lora:BeaconDataRate

                  >


                  <

                     lora:UplinkDwellTime

                  >

               0

                  </

                     lora:UplinkDwellTime

                  >


                  <

                     lora:DownlinkDwellTime

                  >

               0

                  </

                     lora:DownlinkDwellTime

                  >


                  </

                     lora:IsmbandProfile

                  >




The default settings for each ISM band are compliant with LoRaWAN Regional Parameters “LoRaWAN-Regional-Parameters-v1.1rA.docx”; they are presented by the following table:

When the device sends its first uplink frame, the LRC determines the ISM-band of the device from the RFregion of the best-LRR, then uses the appropriate ISM band profile to communicate with the device during the boot phase.

NOTE: the boot parameters indicated by the LoRaWAN specification are only valid for the boot phase (to establish the initial communication with the device); the network can still use different runtime settings (defined in RFregion configurable or in the Connectivity Plan) that are notified to the device via appropriate MAC commands.

Key Customer Benefits

This feature has the following benefits:

1. Ensure more visibility regarding profile-related boot settings without relying on hardcoded values, and ease troubleshooting of related issues.


2. Additionally, Device Profile creation could be simplified since there is no need any more to configure boot parameters in the Device Profile as long as they obey the default settings defined by LoRaWAN.


Feature Activation

Feature Limitations

The Data rate and TxPower encoding tables, as well as the downlink RX1 data rate mapping and Max Payload size tables are still hardcoded by the LRC (for each ISM band) in release 5.2.2.

RDTP-5316: Rename ASKey and LRC-AS key in all User Interfaces

Feature Description

In release 5.2.2, the two following keys are renamed to avoid any confusion regarding how they are used:

• “LRC-AS Key” is renamed “ Tunnel interface authentication key “: This key is optionally set in the Device Manager or Application Manager GUI, it is used to provide HTTP signature (via security tokens) to uplink/downlink frames exchanged between LRC and AS over the tunnel interface.


  For more information about this tunnel interface security mode, please refer to “ThingPark LRC-AS Tunnel Interface Developer Guide”.


• “AS Key” is renamed “ AS Transport Key ”: This key is used in HSM/SSM modes, it is either configured in the Device Manager (in case of LRC combo mode with HSM) or in the Key Manager (in case of splitted NS/JS mode, with either HSM or SSM security).


  In HSM mode, this key is generated by the HSM (based on asymmetric cryptography, using RSA key) and configured on AS to be able to decrypt the Application Session Key (AppSKey) of each LoRaWAN session and accordingly decrypt/encrypt application payload.

  For more information about the use of this key, please refer to the “ThingPark HSM Solution Description” document.


Key Customer Benefits

This feature avoids any confusion/misinterpretation of the application server security keys. The previous naming on ThingPark GUI was confusing, the new labeling names are meant to be more explicit.

Feature Activation

Not applicable.

Feature Limitations

Not applicable.

RDTP-4587: Validation of RF Region content by TWA

Feature Description

The purpose of this feature is to allow TWA to validate the correctness of the syntax of the RF Region content when the file is provisioned (created or updated) from the Operator Manager.

Before release 5.2.2: the RF Region content was accepted by TWA without verifying that the XML attributes have the right syntax; which is prone to human errors/typing mistakes…

Starting release 5.2.2: the content of the RF Region is validated before it is provisioned on the LRC. In case of syntax error, TWA returns an error to warn the user.

This feature applies to the RF Regions imported from the catalog (either automatically from Actility REPO or manually using custom catalogs) as well as the RF Region created/edited from the Operator Manager application.

Key Customer Benefits

Thanks to the feature, the Operator can be warned if the syntax of the RF Region content is wrong. Hence, this feature brings operational gain to ThingPark Operators.

Feature Activation

This feature is activated by default once ThingPark is upgraded to release 5.2.2.

Feature Limitations

RDTP-5298: Default Device Activation method selection

Feature Description

Since Over The Air Activation (OTAA) has become the most common and widely used activation method, as of TPW release 5.2.2, the default Device provisioning method is set to OTAA.

Key Customer Benefits

The feature introduces a visually intuitive approach towards device provisioning in ThingPark Wireless’s Device Manager application by proposing the popular device method as a default one.

Feature Activation

The feature is activated by default.

Feature Limitations

Not applicable.

Refactoring of Alarm Management (RDTP-4544 and RDTP-9073)

Feature Description

The below tables summarize and lists the behavior prior to ThingPark release 5.2.2, and the enhancements introduced in release 5.2.2 as part of this feature:

Classification of device alarms:

For detailed information about device alarms, please refer to [3] - ThingPark
Wireless Device Manager User Guide .

Classification of base station alarms:

For detailed information about base station alarms, please refer to [4] - ThingPark Wireless Network Manager User Guide .

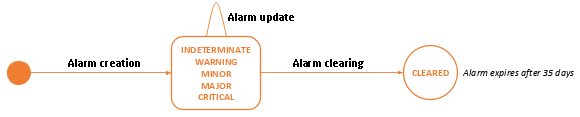

The following diagram describes the alarm management process prior to release 5.2.2:

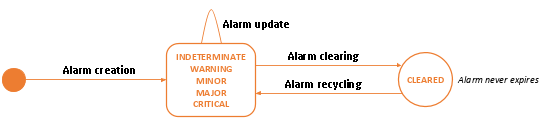

The following diagram describes the alarm management process starting release 5.2.2:

Key customer benefits

This feature improves ThingPark alarm management, by optimizing the alarm storage in the database and correcting implementation issues from previous releases.

These improvements reduce end-user’s alarm management complexity by:

• fixing alarm counts


• deleting alarms associated with deleted objects (base stations or devices)


• presenting a more comprehensive view of number of occurrences of the same type of alarm.


Feature Activation

This feature is activated by default.

Feature Limitations

RDTP-6179 ThingPark API documentation through Swagger - Phase 3

Feature Description

In ThingPark Wireless release 5.2.2, the OSS API framework was introduced to the ThingPark users to design, build, document and consume REST APIs.

The online documentation is accessed by browsing the following URL  https://oss-api.thingpark.com/

The following improvements have been introduced in ThingPark OS release 5.2.2:

• Documents are produced automatically.


• API error codes are available.


• Out-of-the-box Swagger UI is supported in this release.


• Internal improvements are introduced to use this framework during the development and integration phases.


• Vendor API’s capacities got extended by attributing different requirement levels to schema properties based on REST operation; for instance, a schema property can be “required” in CREATE, “optional” in UPDATE and “not available” in READ.


• Enable Swagger difference capabilities to handle composed schemas.


• Openapi-components packaging.


• Use packaged openapi-component.


• Handle TWA and SMP error codes page.


• Introduce a documentation builder - merge git repos.


• Handle API version artifact publication.


• OSS API site building - create a project that build OSS API archive from artifact of each version.


Key customer benefits

The OSS API framework enables a simplified and modern API user experience, mainly set for development, testing, consuming API Rest resources and accessing API documentation. By becoming a dynamic API framework, it continues the OSS API documentation stack that was available before ThingPark v5.2.2.

Feature Activation

To access the OSS API framework, please browse the following URL:  https://oss-api.thingpark.com/

Feature Limitations

The following feature limitations are considered and are product feature candidates for improvements in the next ThingPark releases:

• Model order properties is set by an alphabetical order and not a functional one.


• Enhancements and clarifications are required on the JSON date format (EPOC) vs the XML date format (ISO).


• A convenient and optimized PDF format should be produced for each API method.


• API examples may include non-real values.


• API testing:


  • Manual API testing is not supported. The HTTP document does not allow to run manual testing even when the user owns valid credentials.


  • Automatic API testing, e.g. for regression and progression type of testing, is not supported. The HTTP document does not allow to run automatic testing even when the user owns valid credentials.


RDTP-8739: Custom profiles are prefixed by default

Feature Description

In order to clearly differentiate custom RF Region or device or base station profiles created by the Operator in the Operator Manager application from those included in the Actility catalogues, starting TPW release 5.2.2, the custom profiles are by default prefixed with “CUSTOM/“.

The prefix is a system-wide configuration, it may be empty for backward compatibility. This prefix is automatically added by the Operator Manager GUI for each new RF Region or base station or device profile created in release 5.2.2. It is also added by the Operator Manager API; however, to avoid backward incompatibility on the API in case the requesting server doesn’t support processing of the profile ID in the API response, the prefix can be set to “”.

Key Customer Benefits

The feature allows an easy differentiation between custom RF Region, device or base station profiles and those included in the catalogues.

Feature Activation

The feature is activated by default. It can be deactivated by setting the system-wide prefix to “”.

Feature Limitations

The length of the profile ID – including the prefix – must not exceed 40 characters.

RDTP-5250: Limit AS destination URLs

Feature Description

This enhancement enforces the maximum number of destination URLs per Application Server route, as well as the maximum number of Application Servers per AS Routing Profile.

Before release 5.2.2:

• The number of URL destinations per route is not enforced for HTTP Application Servers in Device Manager and Application Manager.


• The parameter “Maximum allowed destinations per Application Server route” defined in Connectivity Plan enforces the total number of URL destinations in all Application Servers associated with a AS routing profile. There was no absolute maximum applied to this parameter before release 5.2.2.


In release 5.2.2:

• The maximum number of destination URLs per HTTP Application Server is enforced:


  • For “sequential” strategy: Max 5 URL destinations per route can be defined (can be modifiable by operator-wide configuration).


  • For “blast” strategy: Max 3 URL destinations per route can be defined (can be modifiable by operator-wide configuration).


IMPORTANT WARNING: Blast mode will be soon deprecated in upcoming ThingPark releases; hence it is strongly recommended that all the new application servers are created using the sequential mode if several URL destinations are required for reliability. In case the routing strategy really requires the blast mode (sending the same uplink frame to N destinations simultaneously), then it is strongly recommended to configure the different destinations as distinct Application Servers and keep only one destination per AS.

• The maximum number of AS per AS routing profile is also enforced: « Maximum allowed destinations per Application Server route » is renamed in Connectivity Plan to « Maximum allowed Application Servers », it now controls the maximum number of Application Servers associated with the AS Routing Profile and has an absolute maximum = 5 (modifiable by operator-wide configuration).


  1. Key Customer Benefits


This enhancement prevents uncontrolled usage of AS declaration in the routing profile to avoid overloading the LRC.

Feature Activation

This feature is automatically activated after migration to release 5.2.2.

Feature Limitations

Not applicable.

RDTP-7849: LRR upgrade depending on firmware/FPGA versions

Feature Description

In release 5.2.2 , the following enhancements are supported:

• The LRR reports to TWA the firmware version and the FPGA version currently installed on the base station.


• The base station profile catalogue is enhanced to provide, for each BS profile, the compatibility matrix between each LRR version and the corresponding firmware and FPGA versions compatible with it.


• When providing the list of LRR software packages available for LRR upgrade, TWA Network Manager proposes only the LRR software packages that are compatible with the firmware and FPGA versions currently installed on the target base station, based on the compatibility matrix defined in the base station profile.


NOTE: LRR software upgrade does not support upgrading the firmware or FPGA versions of the gateway in the current release.

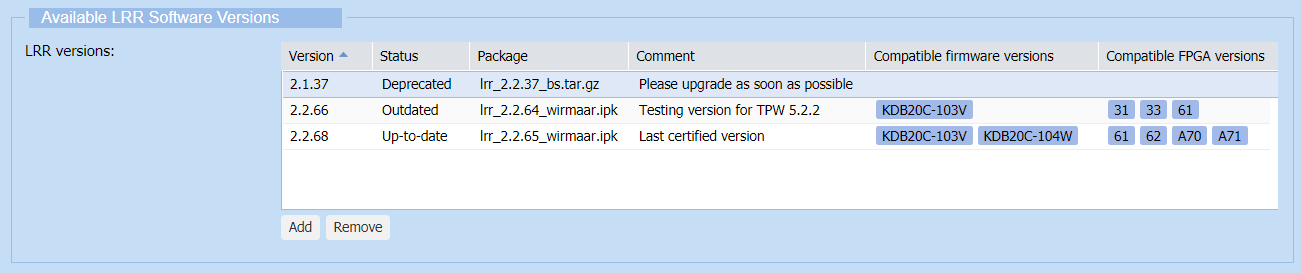

To support this enhancement, the base station profile is enriched with the compatibility matrix between LRR version, firmware version and FPGA version as per the following example:

NOTE: If nothing is displayed in Compatible firmware versions and/or Compatible FPGA versions, it means that the LRR software version is compatible with all firmware and FPGA versions of base stations associated with this base station profile.

Key Customer Benefits

Thanks to this feature, the LRR upgrade becomes safer without any risk to break the compatibility between the LRR version and the firmware/FPGA versions already installed on the base station, if the compatibility matrix is kept up-to-date on the base station profile.

Feature Activation

This feature is automatically activated in release 5.2.2.

Feature Limitations

Upgrade of base station firmware and/or FPGA software from Network Manager is not supported in the current release.

EPC Connector (EPCC) Features

This feature allows secure provisioning of Cellular secret key (Ki) in Device Manager. It is not supported for HSM usage with Cellular devices. The solution relies on RSA Keys (referred as Exchange Keys):

The user exports an RSA Public Key and uses it to encrypt the device keys

Device keys are provisioned encrypted and decrypted using the RSA Private Key by the TWA.

The following procedure is implemented:

1. The user exports the TWA RSA public key (TWK[pub]) and uses it to encrypt Ki


2. The user creates the Device by providing the RSA encrypted Ki


3. RSA encrypted Ki is decrypted and re-encrypted by TWA using the HSS AES Key (HSK)


4. AES encrypted Ki is provisioned in HSS (current implementation is used)


This feature ensures that Secret Key (Ki) is not entered in clear text in TPW GUIs/Device Manager API for security purposes.

Clear-text Cellular key provisioning is still supported in Device Manager API/GUI for backward compatibility.

Feature Activation

This feature is activated only if cellular is activated in Operator manager.

Feature Limitations

Not applicable.

The scope of this Story is to remove the provisioning of the Ki of cellular devices from the Device Manager. The rationale is that the Subscriber should not access the Ki.

The SIM cards (IMSI + Ki) must be provisioned by the Connectivity Supplier and Ki must be stored encrypted in ThingPark Wireless database. When cellular device is provisioned in the Device Manager, the SIM card information is linked to the Device using the provided IMSI.

SIM state is also introduced to follow the SIM card lifecycle:

• ‘Unallocated’: SIM is not allocated to any device


• ‘Allocated’: SIM is associated with IMEI and provisioned in device manager


• ‘HSS Provisioned’: SIM is provisioned in HSS


This Story only applies to the case where the HSS provisioning is activated in Operator settings.

SIM card is pre-provisioned by the Connectivity Supplier. Ki is not provided by the Subscriber when provisioning the Device: Ki is deduced using the provided IMSI.

The following procedure is implemented:

1. The Connectivity Supplier provisions the SIM card by providing IMSI and Ki (clear mode).


2. SIM card is created in ThingPark Wireless database and linked to the Subscriber’s Operator and the Connectivity Supplier. Ki is stored encrypted using the Operator HSS Key. SIM state is ‘Unallocated’.


3. The Subscriber provisions the Device by providing IMEI and IMSI.


4. Device is created in ThingPark Wireless database and linked to the SIM card. SIM state is ‘Allocated’.


5. Once activated (associated with a Connectivity Plan and an AS Routing Profile), the Device and SIM card are provisioned in the HSS/SPR. SIM state is ‘HSS Provisioned’.


This feature allows operator to not provide the secret keys (Ki) to subscriber neither encrypted nor in clear text.

Feature Activation

This feature is activated only if cellular is activated in Operator manager.

Feature Limitations

Not applicable.

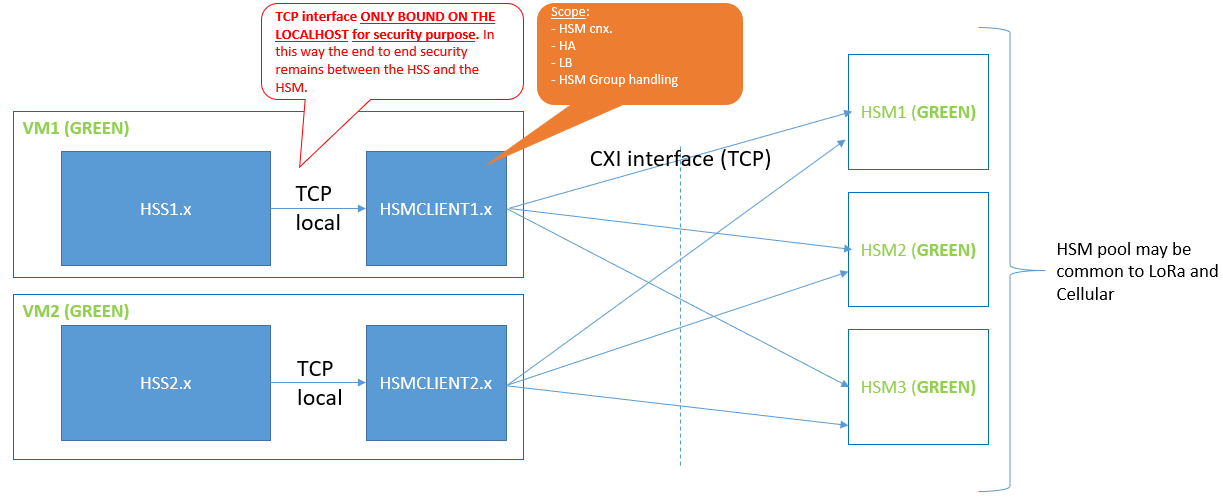

HSMCLIENT is multi-threaded client that allow HSS to communicate with pool of HSM to carry out authentication requests and receive authentication response from HSM.

Key Customer Benefits

This feature allows storing secret key and operator key in HSM, which provides robust security as HSM is hardware-based security solution.

Feature Activation

This feature is activated only if cellular is activated in Operator manager. This feature also requires the HSM to be activated in the network.

Feature Limitations

Not applicable.

This feature enables TWA support for HSM. Secured Cellular keys provisioning in HSM mode applies to Cellular provisioning in following case:

• Cellular Operator uses Actility HSS and HSM


  AND


• SIM cards are pre-provisioned by Connectivity Supplier


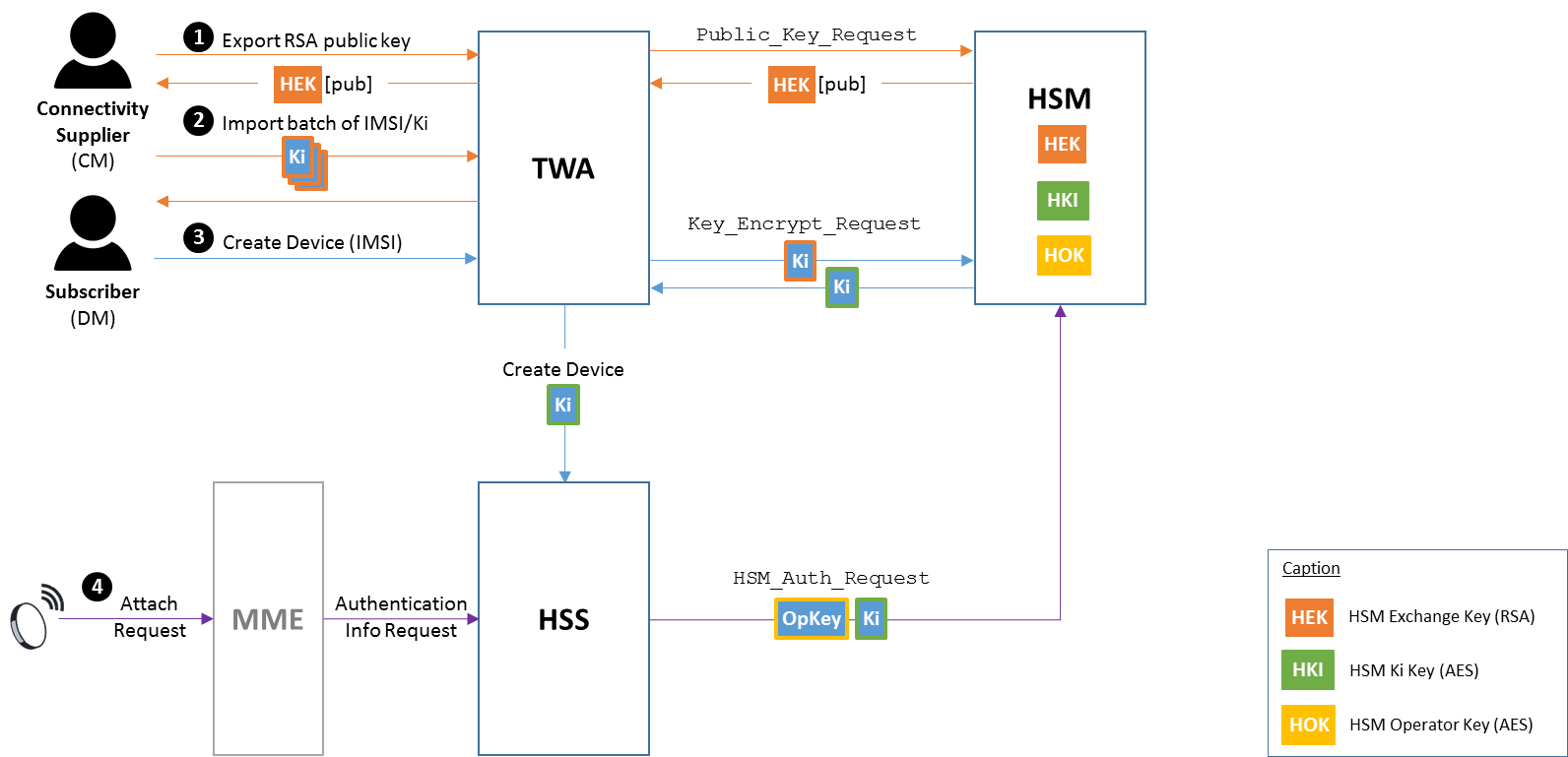

The following procedure is implemented:

1. The Connectivity Supplier exports HSM RSA public key (HEK[pub]) of the selected HSM Group and uses it to encrypt the Ki


2. The Connectivity Supplier imports the SIM cards by providing IMSI , RSA encrypted Ki , HSM Group ID and HEK version


3. The Subscriber provisions the Device by providing IMEI and IMSI


   • Device is created in TWA database and linked to the SIM card


   • RSA encrypted Ki is decrypted and re-encrypted by HSM using the HSM Ki Key (HKI)


   • AES encrypted Ki is provisioned in HSS


4. On Authentication Info Request , the HSS provides AES encrypted OpKey and Ki to the HSM for authentication vectors generation


   1. Key Customer Benefits


This feature enables TWA support for HSM for EPC Connector.

Feature Activation

This feature is activated only if cellular is activated in Operator manager. This feature also requires the HSM to be activated in the network.

Feature Limitations

The Operator cannot restrict the list of HSM Groups available to the Connectivity Manager.

RDTP-7746: EPCC Proxy between PGW and HSS

Feature Description

This feature enables the decoupling of PGW features when different security zones are present in the operator network. For example, the figure below has three security zones in the network.

• GREEN Zone: This is the most secure zone which contains HSS/SPR as it stores SIM card database and is responsible for all the authentication


• RED Zone: This zone contains elements such as LRC and PGW that face external network.


• YELLOW Zone: This zone contains elements that interface between GREEN and RED Zone. These elements are PGW PROV, TWA, License server, etc. This zone acts as an intermediary between RED and GREEN zone as they are not allowed to interact with each other directly.


TWA needs to pass PGW configuration data such as fleet subscription, network context, microflow and enforcement profiles and so on. In such a case, PGW PROV is created which holds such PGW configuration data. There is also additional element called HSS PROXY which allows PGW to make SPR requests from HSS.

Such an architecture allows splitting of different components into different security zones of the network.

Key Customer Benefits

This feature allows placing different components in different security zones thus improving the overall security of the solution.

Feature Activation

This feature is activated only if cellular is activated in Operator manager.

Feature Limitations

Not applicable.

List of User Stories included but not validated

Issues Resolved for Customer Project/Customer Support

This section lists customers issues that are resolved in ThingPark 5.2.2:
